S1 – Fusion – Design – Motor Effects

Motor Effects #

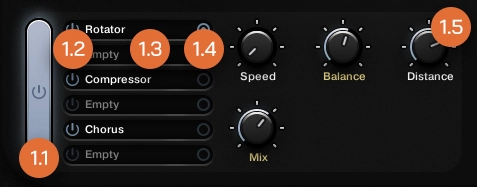

Each motor includes six dedicated effect slots, allowing you to insert and chain multiple effects for detailed sound shaping and creative modulation.

Master Effect Bypass #

Toggles all six effect slots on or off simultaneously for the selected motor. Useful for quickly comparing the dry and processed sound.

Slot Effect Bypass #

Enables or disables individual effect slots within the motor, allowing selective bypass of specific effects without affecting the entire chain.

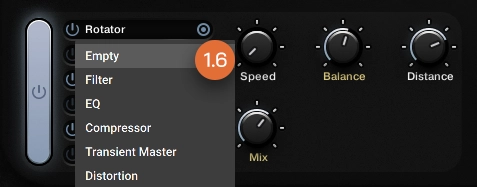

Slot Effect Menu #

Opens the effect selection menu for each slot. Choose from a variety of creative and utility effects to sculpt the motor’s sound.

Slot Selector #

Indicates which slot is currently selected for parameter editing. Clicking this button selects the slot and displays its parameters.

Effect Parameters Panel #

Displays the editable parameters of the currently selected effect slot, enabling detailed control over the chosen effect.

Available Effects #

Each slot offers a curated selection of effects designed to expand creative potential and enhance sonic flexibility.

Effect	Parameter	Description
Filter	Cutoff	Start frequency for filtering
	Resonance	Boost around cutoff
	Type	Blend LP/BP/HP
	Mix	Blend dry and wet signals
EQ	Frequency	Center frequency
	BW	Bandwidth range
	Gain	Boost or cut level
Transient Master	Attack	Adjust initial impact
	Sustain	Control sound decay
	Gain	Adjust output level
Compressor	Threshold	Level to start compression
	Ratio	Compression strength
	Attack	Time to apply compression
	Release	Time to stop compression
	Gain	Adjust output level
Distortion	Drive	Amount of distortion
	Damping	Reduce high-end harshness
	Output	Adjust final level
Chorus	Rate	Modulation speed
	Amount	Modulation depth
	Voices	Number of layers
	Delay	Delay between voices
	Feedback	Feed signal back to effect
	Mix	Blend dry and wet signals
Flanger	Rate	Modulation speed
	Amount	Modulation depth
	Pitch	Shift modulation spectrum
	Voices	Number of layers
	Feedback	Feed signal back to effect
	Mix	Blend dry and wet signals
Phaser	Rate	Modulation speed
	Amount	Modulation depth
	Center	Center frequency
	Notches	Number of filter notches
	Feedback	Feed signal back to effect
	Mix	Blend dry and wet signals
Bitcrusher	Bits	Reduce bit depth
	Sample Rate	Reduce sample frequency
	Jitter	Add timing variation
	Crunch	Clipping-style distortion
	Dither	Mask quantization noise
	Mix	Blend dry and wet signals
Ring Modulation	Frequency	Modulator frequency
	Stereo	Stereo phase offset
	Type	Blend modulation styles
	Feedback	Feed signal back to effect
	Mix	Blend dry and wet signals
Rotator	Speed	Rotation speed
	Balance	Blend drum/horn components
	Distance	Simulated mic distance
	Mix	Blend dry and wet signals
Wow/Flutter	Scrape	Tape scraping noise
	Wow	Slow pitch fluctuation
	Flutter	Fast pitch fluctuation
	Speed	Tape playback speed
	Saturate	Add tape-like warmth
	Mix	Blend dry and wet signals
Delay	Time	Delay interval
	Tempo Sync	Sync delay to tempo
	Feedback	Feed signal back to effect
	Low Cut	Remove low frequencies
	High Cut	Reduce high frequencies
	Dry/Wet	Blend dry and wet signals
Reverb	Time	Reverb tail length
	Damping	Reduce high-end in tail
	Mod	Tail pitch modulation
	Low Shelf	Shape low frequencies
	Dry/Wet	Blend dry and wet signals
